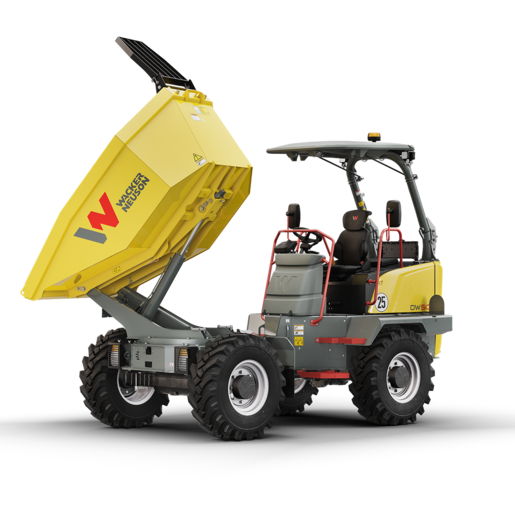

Wacker Neuson DW50 Wheel Dumper

• Weather protection roof
• Hydrostatic 4-wheel drive with automatic ECO mode
• Partially locked differential
• Hill-Hold function
• Rear LED lights incl. dynamic turn signals

Standard Components
General

• Payload: 5,000 kg
• Hydraulic swivel tip skip (water volume: 1,200 l, struck: 1,970 l, heaped: 2,650 l)
• Fold-down roll over protection system (ROPS) with gas pressure damper
• Speed up to 25 km/h
• Tires: 12.5-18 (Mitas, MPT-01) tread with very good traction and self-cleaning
• View camera in front with 7'' color monitor (IP69) and camera with LEDs (IP69)

Engine

• Deutz TD2.2 diesel engine, 61 HP, 4-cylinder, turbocharged, liquid cooled, Stage V emissions compliant

Hydraulics

• Hydrostatic 4-wheel drive with automatic ECO regulation, performs the function of a permanent brake (retarder)
• Travel direction and slow travel speed controllable with joystick
• Combined brake-inch pedal, actuates a maintenance-free oil bath disc brake
• Hydraulically operated spring-loaded parking brake
• Gear pump (51.5 L/min) with downstream pressure filter
• Hydrostatic articulated frame steering (load sensing)

Security

• EquipCare telematics hardware - subscription ready
