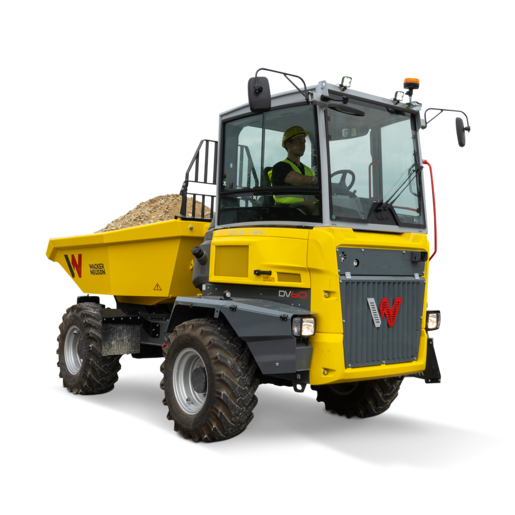

Wacker Neuson DV60-2 Wheel Dumper

For More Information Contact Us

Features

- **Swiveling Operator's Seat**: Generous legroom and a fold-down armrest for easy entry and exit from both sides.
- **Hydrostatic 4-Wheel Drive**: Automatic ECO mode for improved efficiency.
- **Cab Design**: Designed for easy service and maintenance access.
- **Standard Components**:

### General Specifications

- **180° Swivel Seat Console**: Automatically switches steering, direction of travel, and indicators.
- **Seating Positions**: Main seat at the back, secondary seat at the front.
- **Payload Capacity**: 6,000 kg.
- **Hydraulic Swivel Skip**: 2,350 l capacity (level) / 3,150 l (heaped).
- **Roll Bar**: ROPS compliant.
- **Maximum Speed**:
  - 30 km/h (18.6 mph) forward speed in seated position
  - 15 km/h (9.3 mph) reverse speed in seated position
  - 20 km/h (12.4 mph) forward speed in secondary seat position
  - 15 km/h (9.3 mph) reverse speed in secondary seat position
- **Tires**: 405/70-20 (Mitas, MPT-01) profile for excellent traction and self-cleaning.
- **Reversing Camera**: IP69 rating with infrared and white LEDs.
- **Multifunctional Display**: 7-inch color screen (IP69) for camera feed and machine signals (e.g., speed, maintenance counters).
- **Vandalism Protection**: Lockable cover for the display.
- **Document Box**: Accessible from the driver's seat (A4 format, waterproof, lockable).
- **Street Lighting**: For use in the main position, along with a work light directed at the skip.
- **Mirror Package**: Includes left, right, front, and ramp mirrors.
- **Road Gear**: Comes with a wheel chock and front/rear license plate bracket.
- **Reversing Warning Device**: Signal changes based on seat position.
- **Battery Switch**: Main battery switch and positive pole behind a lockable cover, accessible from the ground.

### Engine

- **Deutz TD 2.9 Diesel Engine**: 74 HP, 4-cylinder, turbocharged, liquid-cooled, T4F emissions compliant.
- **Auto Stop Function**: Enhances efficiency and safety.

### Hydraulics

- **Permanent All-Wheel Drive**: For optimal traction.
- **Hydrostatic Automotive Drive**: With braking effect and brake light.
- **Articulated Frame Steering**: Hydrostatic with load sensing.
- **Brake System**: Combined brake-inch pedal with a 2-circuit brake system.
- **Parking Brake**: Electrically operated and spring-loaded.

### Security

- **EquipCare Telematics**: Hardware ready for subscription services.
