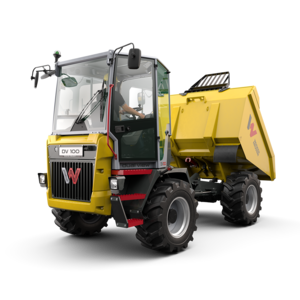

Wacker Neuson DV100 Wheel Dumper

### Features

- **Hydrostatic 4-Wheel Drive**: Includes automatic ECO mode for enhanced efficiency.
- **Rotating Seat**: Allows for flexible operation.
- **Cab Design**: Built for comfort and accessibility.
- **Sturdy Skip Guard**: Provides robust protection.
- **Spring-Loaded Parking Brake**: Ensures safety when stationary.

### General Specifications

- **180° Swivel Seat Console**: Automatically adjusts steering, direction of travel, and indicators.
- **Seating Positions**: Main seat at the back and secondary seat at the front.
- **Payload Capacity**: 10,000 kg.
- **Hydraulic Front Dump Skip**: 4,150 l capacity (level) / 5,000 l (heaped).
- **Maximum Speed**:
  - 30 km/h (18.6 mph) forward in seated position
  - 15 km/h (9.3 mph) reverse in seated position
  - 20 km/h (12.4 mph) forward in secondary seat position
  - 15 km/h (9.3 mph) reverse in secondary seat position
- **Tires**: Alliance 331 flotation (500/60-22.5) for optimal traction.
- **Reversing Camera**: IP69 rated with infrared and white LEDs for enhanced visibility.
- **Multifunctional Display**: 7-inch color screen (IP69) for camera feed and machine signals (e.g., speed, maintenance counters).
- **Vandalism Protection**: Lockable cover for the display.
- **Document Box**: Accessible from the driver's seat (A4 format, waterproof, lockable).
- **Street Lighting**: Functional in the main position, with an additional work light directed at the skip.
- **Mirror Package**: Includes mirrors for left, right, front, and ramp.
- **Road Gear**: Comes with a wheel chock and front/rear license plate bracket.
- **Reversing Warning Device**: Signals change based on seat position.
- **Battery Switch**: Main battery switch and positive pole behind a lockable cover, accessible from the ground.

### Engine

- **Deutz TD 2.9 Diesel Engine**: 74 HP, 4-cylinder, turbocharged, liquid-cooled, compliant with T4F emissions standards.
- **Auto Stop Function**: Enhances fuel efficiency and safety.

### Hydraulics

- **Permanent All-Wheel Drive**: Provides excellent traction in all conditions.
- **Hydrostatic Automotive Drive**: Features hydrostatic braking with brake light.
- **Articulated Frame Steering**: Hydrostatic with load-sensing capabilities.
- **Brake System**: Combined brake-inch pedal designed as a 2-circuit system.
- **Parking Brake**: Electrically operated and spring-loaded for reliability.

### Security

- **EquipCare Telematics**: Hardware ready for subscription services.
