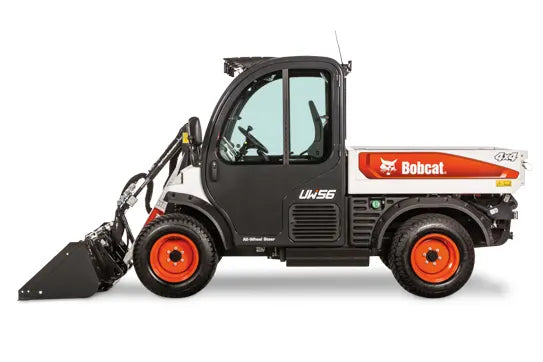

Your work requires power and precision. The UW56 gives you the perfect balance of both.
OPERATING CAPACITY: 1,500 lb
TURNING RADIUS: 50.5 in
HORSEPOWER: 61 hp
| Rated Operating Capacity (ISO) | 1,500 lb |
| Travel Speed - Max | 16.5 mph |
| Auxiliary Std Flow | 18.8 gal/min |
| Auxiliary High Flow | 27.9 gal/min |
| Cargo Box Maximum Load | 2000 lb |
| Turning Radius (AWS Mode) | 50.5 in |
| Fuel Tank | 20 gal |
| Cargo Box Bed Load Capacity | 2000 lb |
| Cargo Box Length | 56 in |
| Cargo Box Width | 51 in |
| Cargo Box Height | 10 in |
| Cargo Box Bed Load Height | 38.2 in |
| Total Vehicle Rated Capacity | 4200 lb |
| Auxiliary Std Flow | 18.8 gal/min |
| Auxiliary Pressure | 3,000 psi |
| Auxiliary High Flow | 27.9 gal/min |
