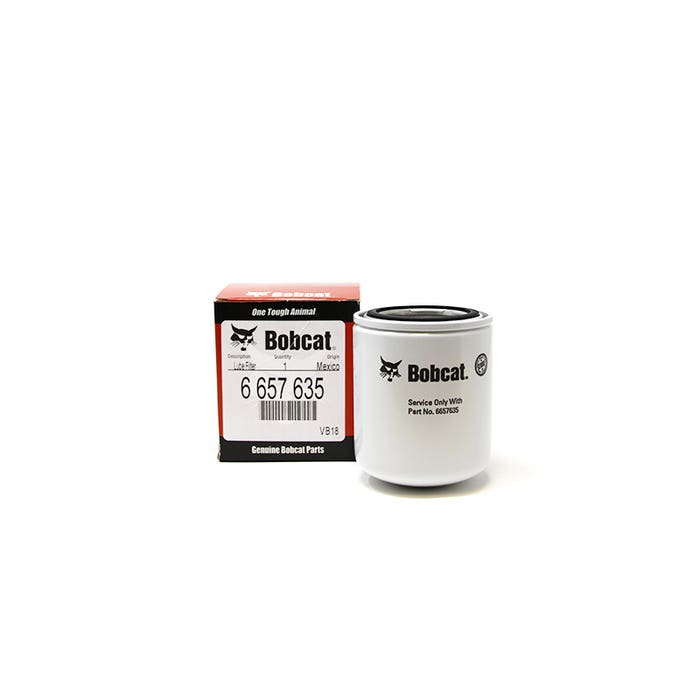

BOBCAT 6657635 FILTER, OIL ENG

Genuine Bobcat Oil Filters

• These filters are designed to capture metals, soot, and contaminants to a higher cleanliness standard.
• Featuring a full-flow, spin-on design, they make servicing easy and reduce the risk of contamination.
• The filter housing is thicker and more durable to prevent failures.
• Treated media effectively traps larger dirt particles and other contaminants.
• The filter media is uniformly pleated and up to 40% thicker than "will-fit" filters.
• A heavy-duty coil spring ensures a secure seal for the media cartridge.
• The louvered inner liner allows maximum oil flow to the engine.

Compatibility

• These oil filters are compatible with the following Bobcat equipment:
  • Backhoe Loaders: B100, B200, B250, B300, BL275
  • Excavators: 425, 428, E25, E26
  • Skid Steer Loaders: 463, 553, S100, S70
  • Track Loader: T110
  • Portable Power: 6KW

Filter Specifications

• Outer Diameter: 3.19 Inches (81 MM)
• Thread Size: M20 x 1.5
• Length: 3.39 Inches (86 MM)
• Gasket OD: 2.52 Inches (64 MM)
• Gasket ID: 2.13 Inches (54 MM)
• Efficiency 99%: 39 MICRON
• Efficiency Test Std: ISO 16889
• Anti-Drainback Valve: Yes
• Bypass Valve: Yes
• Bypass Valve Setting LR: 12 PSI (0.8 Bar)
• Bypass Valve Setting HR: 15 PSI (1 Bar)
• Media Type: Cellulose
• Type: Full-Flow
• Style: Spin-On
