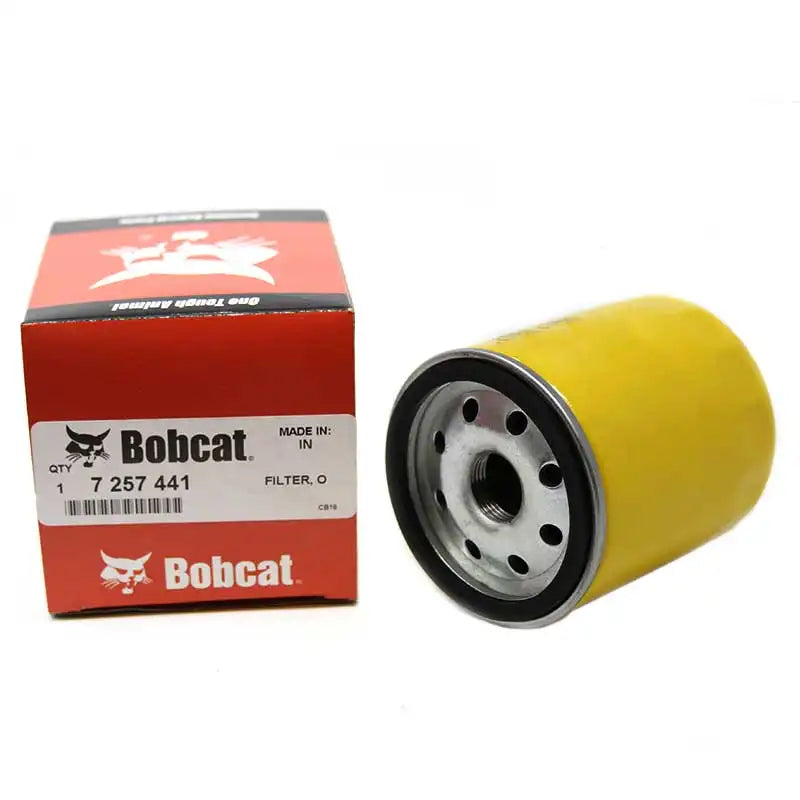

Spin on engine oil filter for utility vehicles traps particles 64% smaller in size than aftermarket filters helping prevent engine contamination. Less restriction provides the right amount of lubrication in normal to severe conditions. Replace after the first 50 machine hours and then every 100 machine hours.
Outer Diameter 2.95 inch (75 mm)
Thread Size M20 x 1.5
Length 4.76 inch (121 mm)
Fits the following Bobcat equipment:
Utility Vehicles: 3400, 3600, 3650, 3400XL
Outer Diameter 2.95 inch (75 mm)
Thread Size M20 x 1.5
Length 4.76 inch (121 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.40 inch (61 mm)
Efficiency 99%
36 micron
Efficiency Test Std SAE J1858
Anti-Drainback Valve
Bypass Valve
Bypass Valve Setting LR 12 psi (0.8 bar)
Bypass Valve Setting HR 15 psi (1 bar)
Media Type: Cellulose Type
Full-Flow
Spin-On
Model Compatibility
Utility Vehicles: 3400, 3600, 3650, 3400XL
