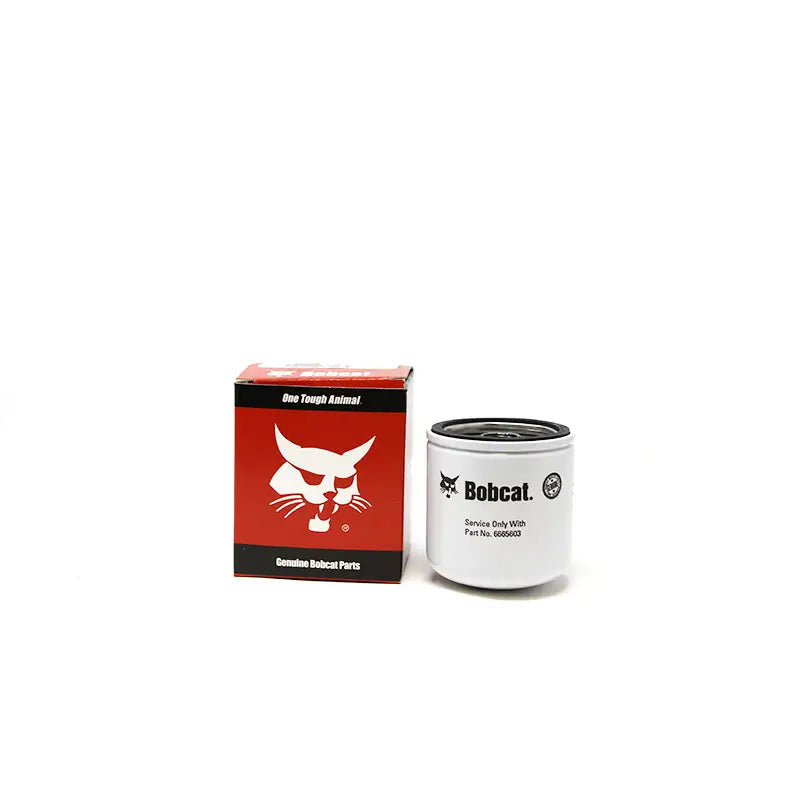

Genuine Bobcat engine oil filters ensure that your engine is optimized with oil at all times -- during cold starts, frequent restarting, operation at low load and at high temperatures.
Large, pleated filter surface: High dirt capacity and optimum filtration performance throughout the entire service interval.
Precise internal overflow valve: Prevents valve from opening too early, giving a sufficient supply of oil even when the filter has reached its capacity.
Strong, corrosion resistant housing wiht high quality seals protects from leaks
Tear resistant medium with special coating prevents unfiltered oil from entering the engine.
Anti-drain lock prevents the filter from draining when the engine is turned off ensuring availability of oil when restarting.
Outer Diameter 2.99 inch (76 mm)
Thread Size 3/4-16
Length 3.39 inch (86 mm)
Gasket OD 2.76 inch (70 mm)
Gasket ID 2.36 inch (60 mm)
Efficiency 99% 40 micron
Efficiency Test Std SAE J1858
Anti-Drainback Valve
Bypass Valve
Bypass Valve Setting LR 7 psi (0.48 bar)
Model Compatibility
Excavators: 442
Loaders: 863, 864, 873, 883, A220, A300, S250, T200
